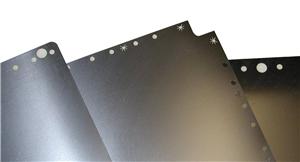

Plate-Only SMT Stencils

SKU Plate-Only



Stencil foils, also known as "plate-only" or un-mounted foils can be ordered for virtually all reusable frame systems.  All stencils are laser cut to the size of your choice.  Be sure to indicate (if applicable) your universal frame type.



Technical Info/Specs

Technology used to make the stencils 100% laser cut
Material used 304 Full Hard Stainless Steel
Stencil thickness .004 - .010 inches
Minimum cut width .0015 inches
Aperture tolerance within .00025 inches

Remember to create and upload your file after purchasing this stencil!

Foil/Plate Size:
Foil/Plate Type - Universal Frame:
Special Instructions:
Your Price $99.00
